Transfer Material Information
In order to be able to transfer material information across projects, you need to have a source project with already defined materials.
1. Add Families to Library

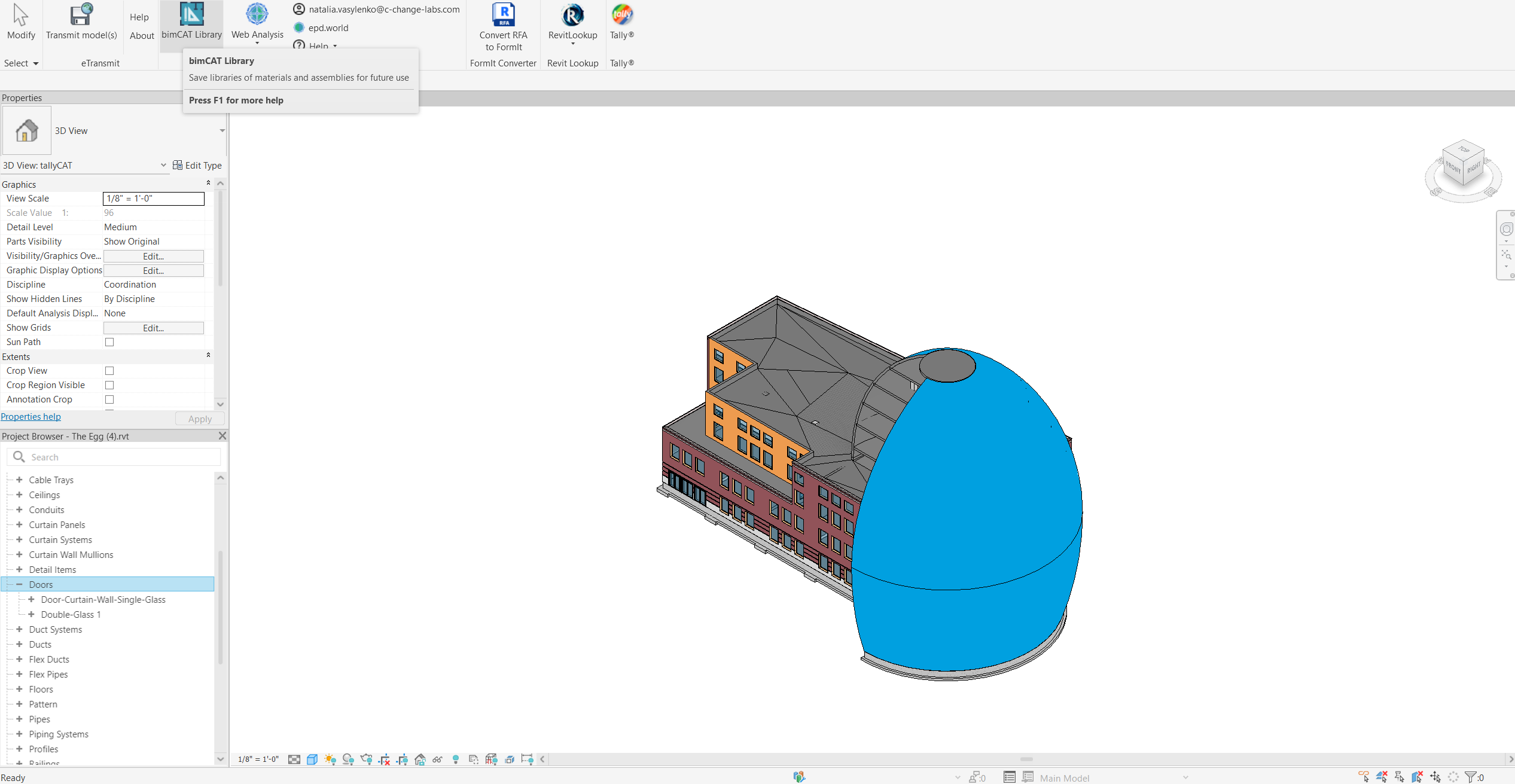

Open the source project with defined material assignments and then open the bimCAT Library.

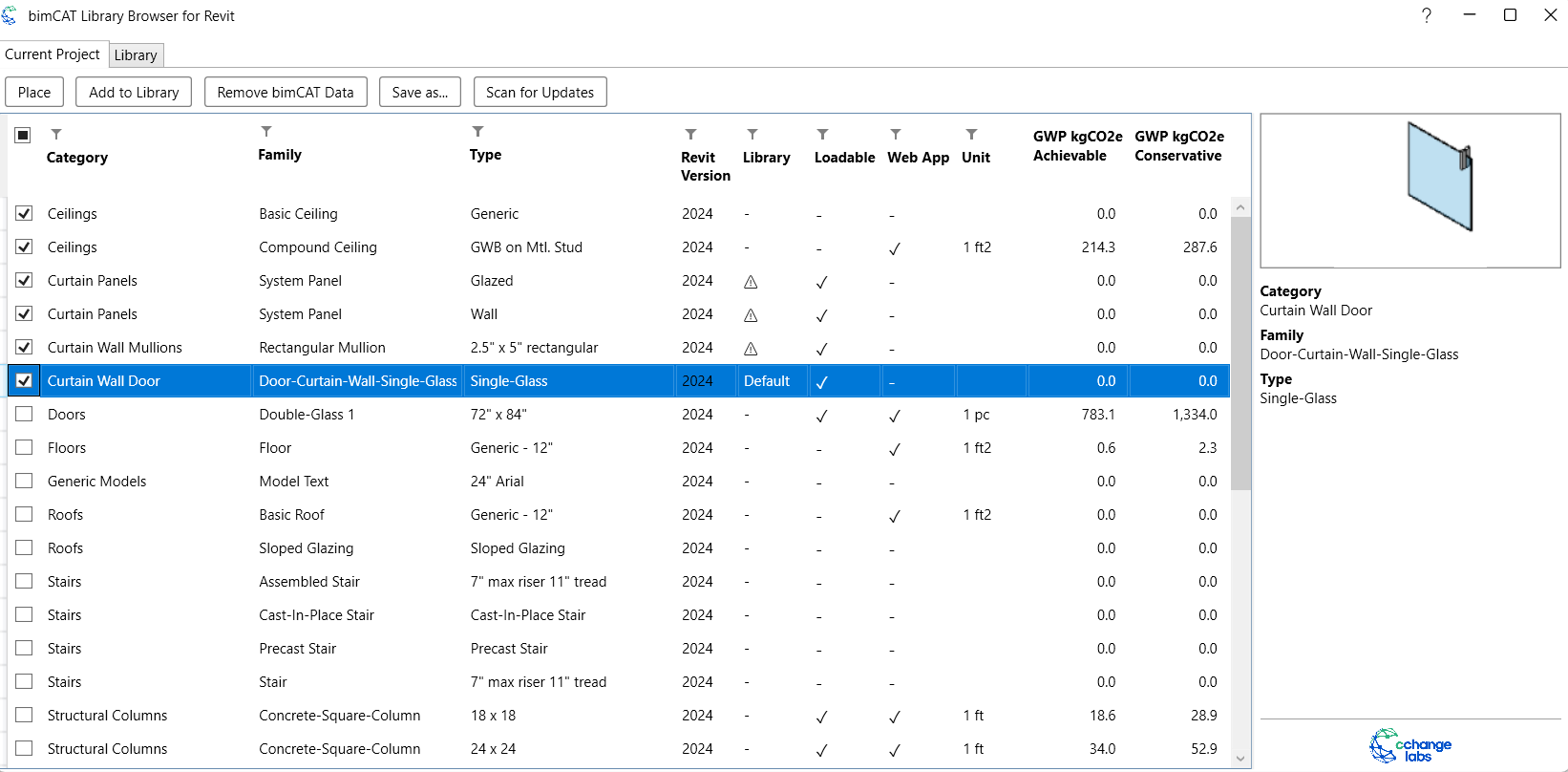

Select the families that you want to transfer to another project.

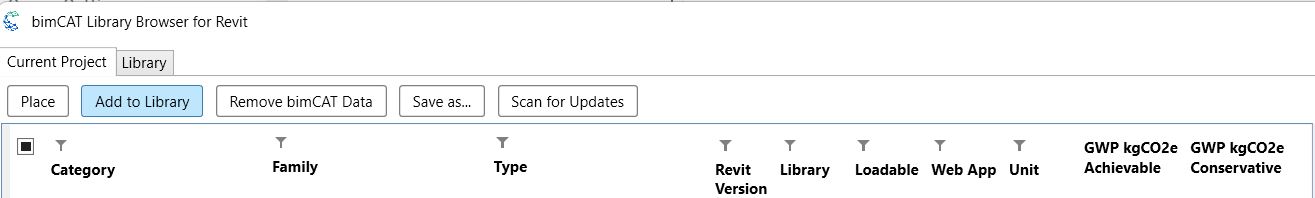

Click 'Add to Library', then select the library you want to add the families to, and click the 'Add Family Types to Library' button.

This places all of the selected families in a library that can be used to populate other projects.
2. Open target project
Now open the project where you want to apply the saved material definitions and open the bimCAT Library again.

3. Scan for updates

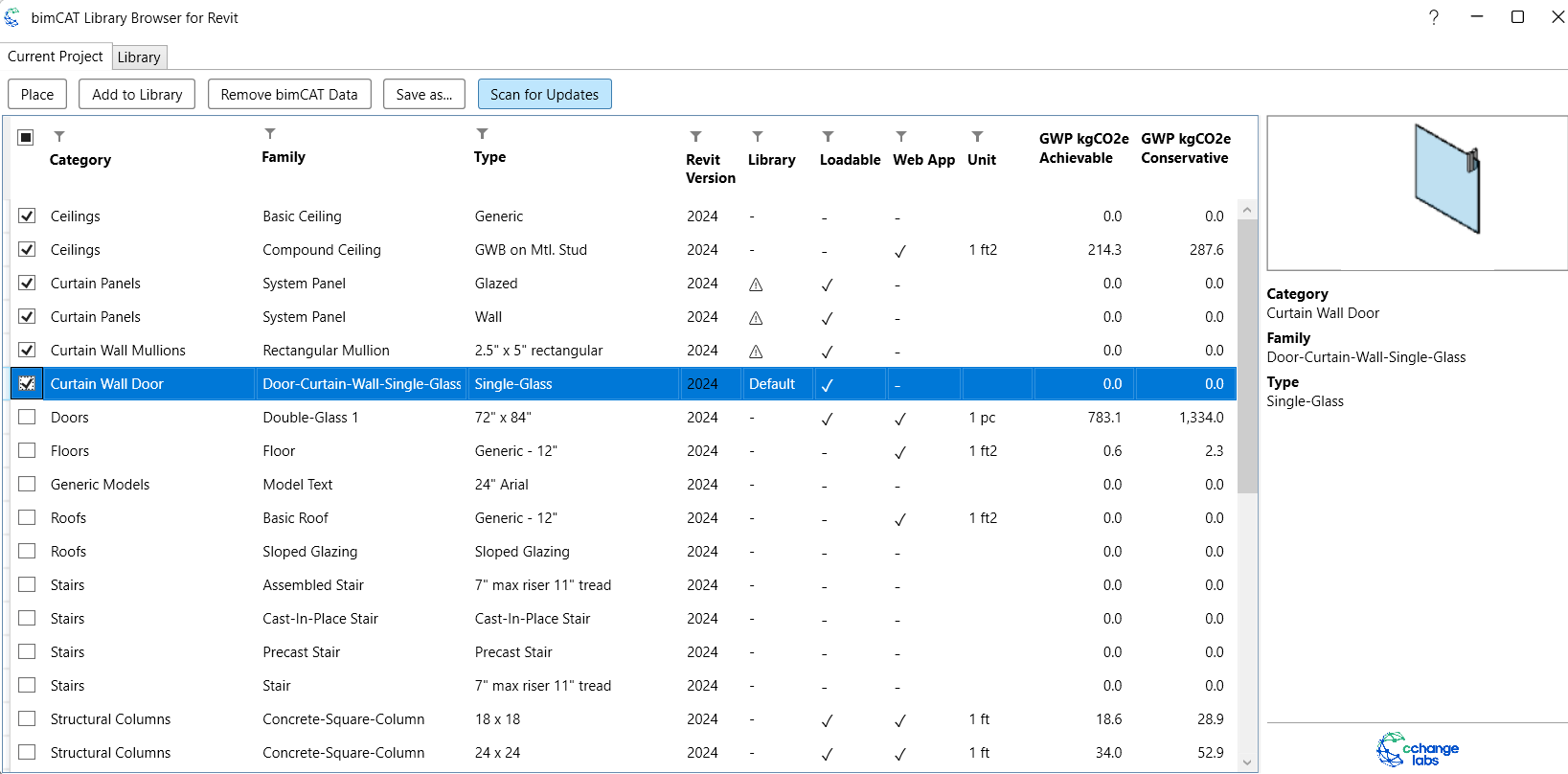

This time, click the 'Scan for Updates' button to check if there are any families in any of our bimCAT libraries that have a matching name with families in the opened model.

4. Select and map families

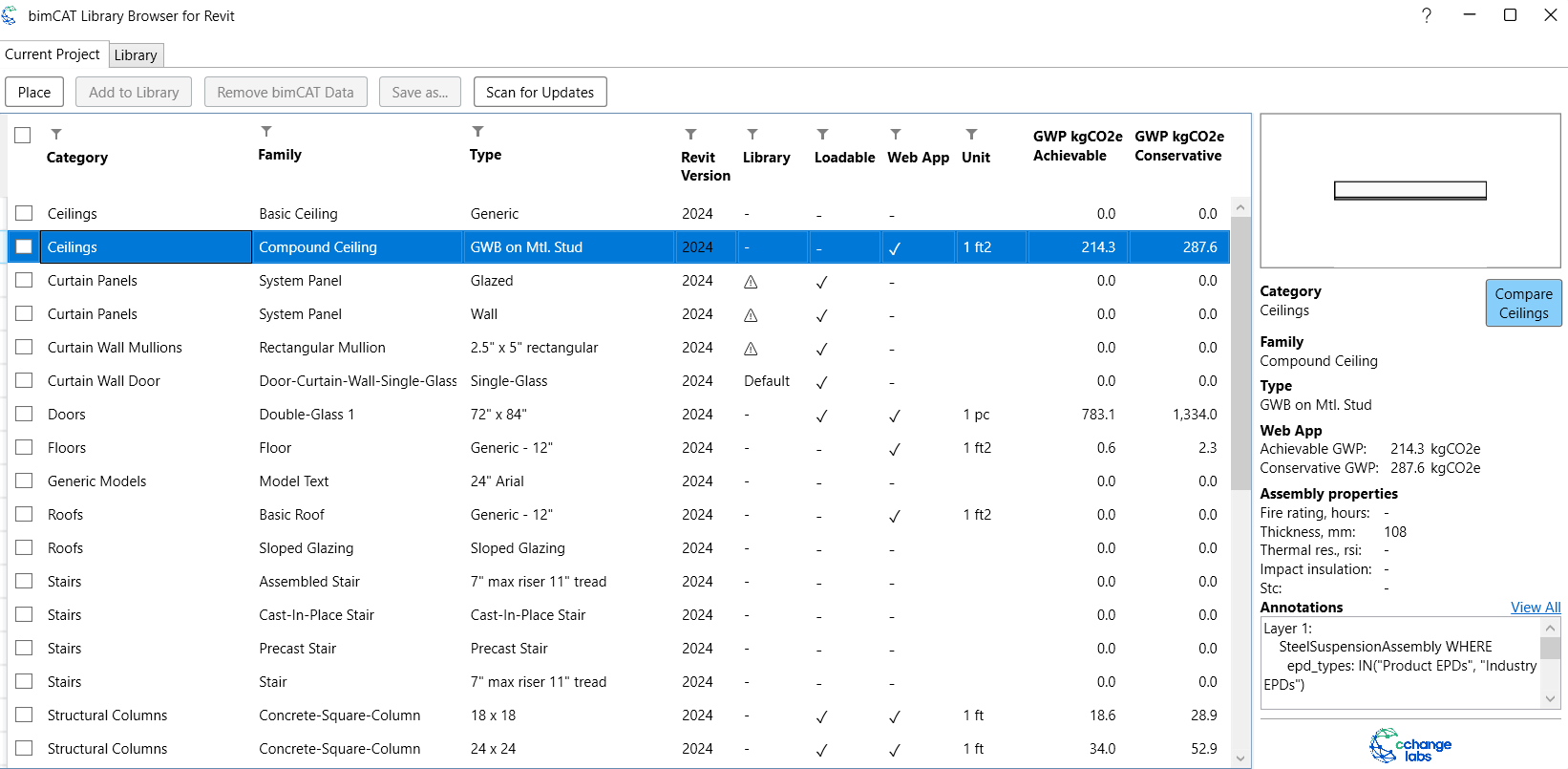

In the 'Project Family Types' window, select the families that you want to transfer information to. If you see next to any families, then you will also need to select a specific source of definitions in the 'Library Family Types' window for each of the marked families. Click the 'Update # Family Types' button in the bottom right corner to proceed to the next step.

Check and confirm the transfer of information in the next window. The information is now transferred from the library into the active project.

The next time you open and sync the project with Web Ap, you will be able to see all of the transfered definitions in Web App as well.
